Roofing

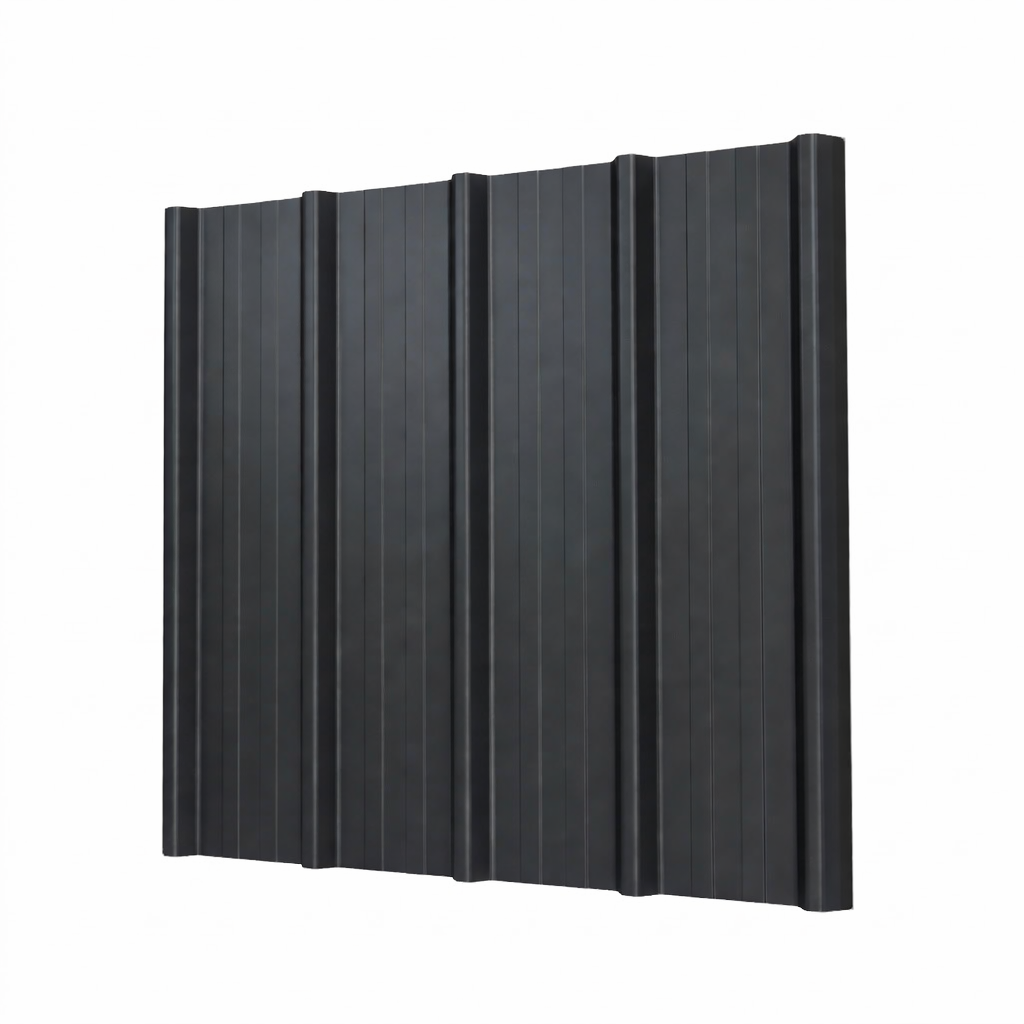

DC100 Insulated Roof Panel

The DC100 is a lightweight, insulated sandwich panel featuring a trapezoidal outer sheet and a premium PIR foam core completely free of CFC/HCFC. With quick and easy installation, it provides a perfect economical alternative for agricultural renovations and new constructions.

Request a QuoteCall Sales
DC100 Insulated Roof Panel

Key Advantages

Economic alternative for agricultural projects
Low weight for easy handling
Premium PIR Insulation core
Quick and easy installation
Strong and weather-resistant durable steel
Low-maintenance finish

Technical Specifications

Standard Length
From 2500 mm to 13500 mm
Effective Width
1000 mm
Type of Metal
Steel S280 GD
Outer Plate
Trapezoidal steel plate, type 33-250-1000 (0.60mm standard)
Coatings
Essential (25 µ), Ultra 60, Ultra 75, HPS 200 Ultra®
Inner Plate
Stucco aluminum foil
Fire Class
B-s2,d0 according to EN 13501-1
Minimum Roof Pitch
≥ 5°

Performance Data

ThicknessWeightU-Value
30mm7.20 kg/m²0.65 W/m²K
40mm7.58 kg/m²0.50 W/m²K
60mm8.34 kg/m²0.34 W/m²K
100mm9.86 kg/m²0.21 W/m²K

Real World Applications

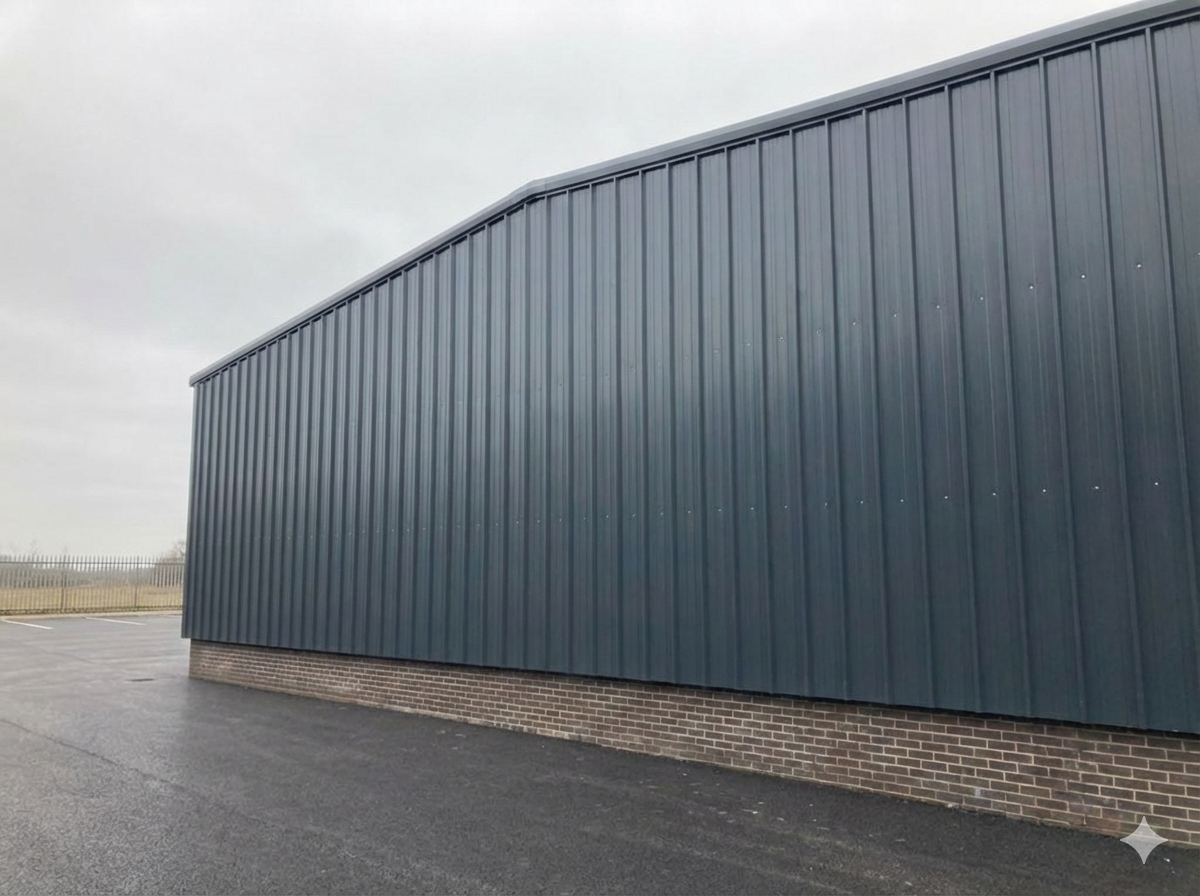

DC100 Insulated Roof Panel application showcase 1

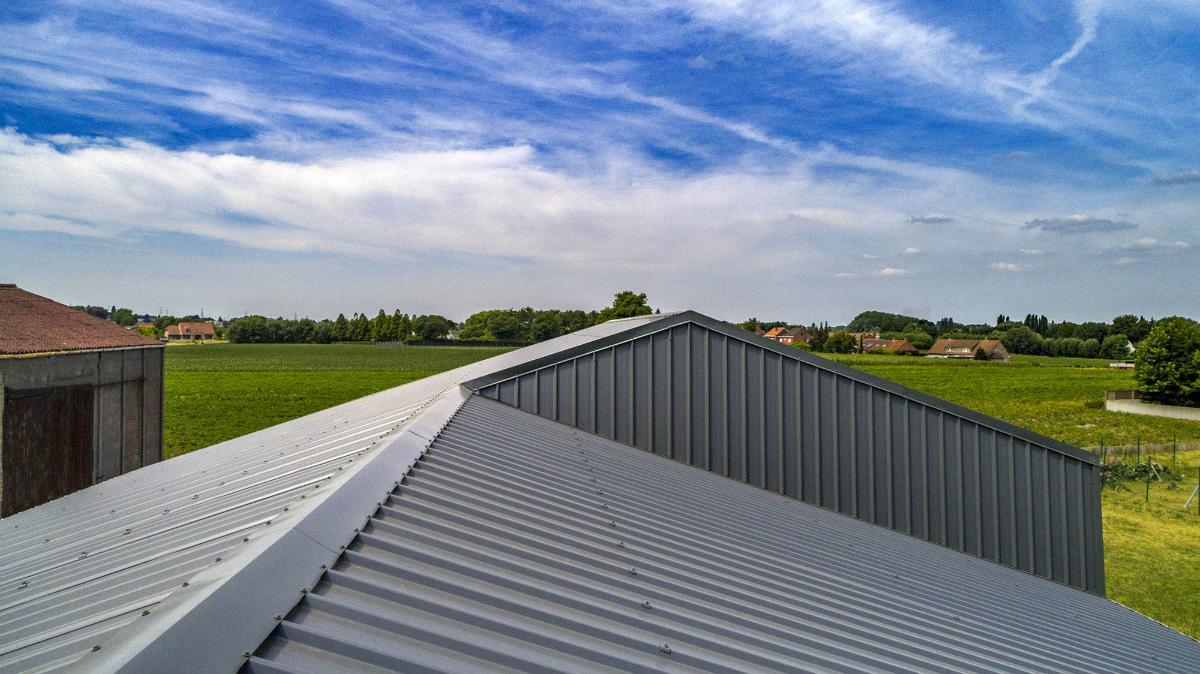

DC100 Insulated Roof Panel application showcase 2

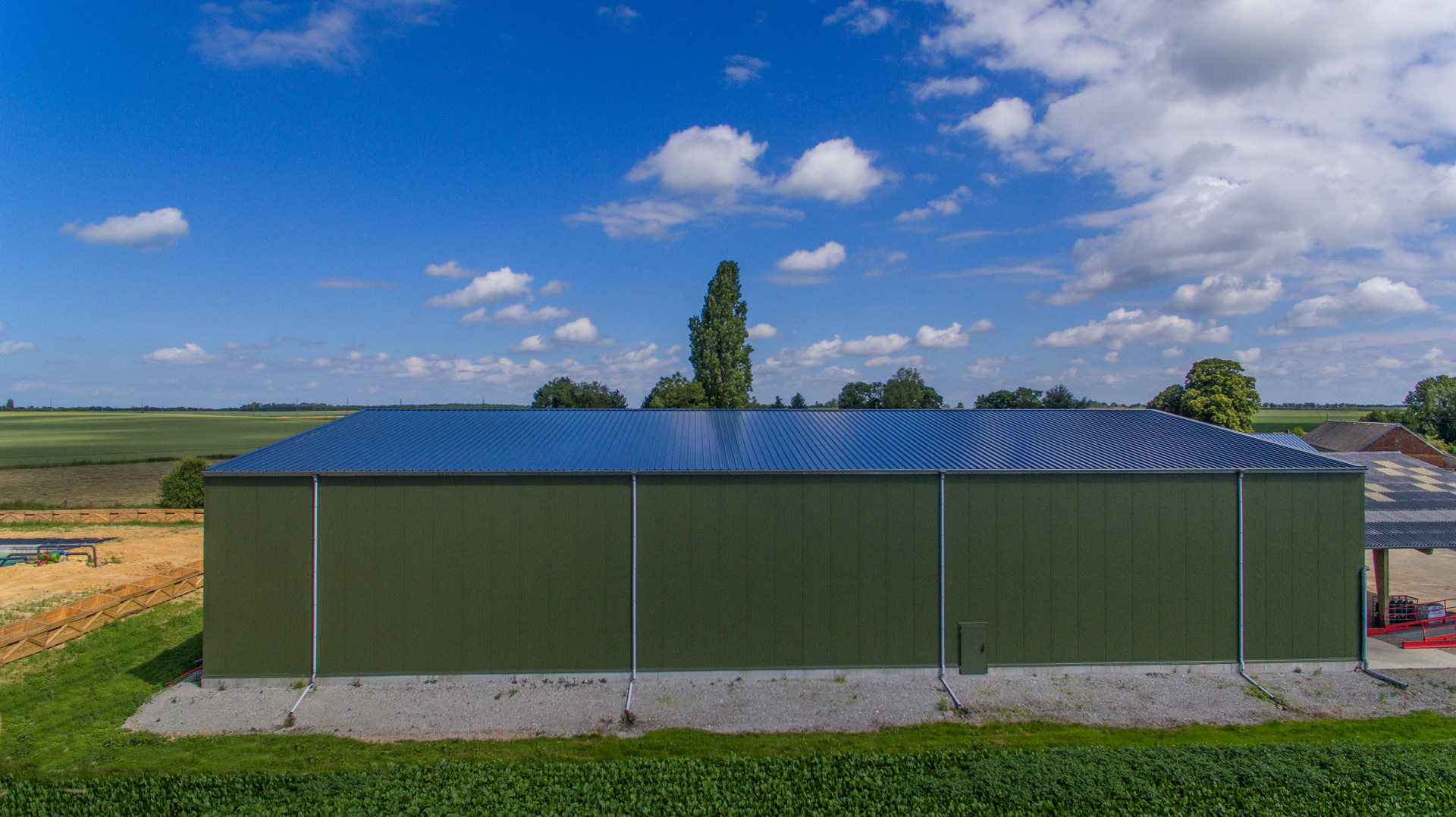

DC100 Insulated Roof Panel application showcase 3
