Composite Panels
22

Our panels are manufactured to meet the highest industry standards, ensuring exceptional quality, durability, and reliability. Designed with advanced fire-resistant technology, they feature either PIR (polyisocyanurate) or Rock Fibre insulation, offering superior thermal performance and enhanced fire safety for various building applications.

With lengths available up to 12.5 metres, our panels provide flexible solutions for projects of all sizes.



Additionally, we offer a diverse selection of external finishes and an extensive palette of colours, allowing you to achieve both functional excellence and striking visual appeal. Whether you seek a sleek, modern look or a more traditional aesthetic, our panels are designed to enhance the overall appearance and architectural integrity of your building.

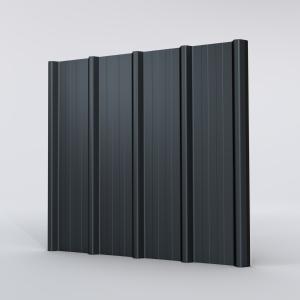

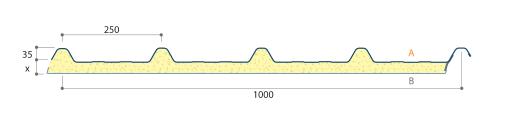

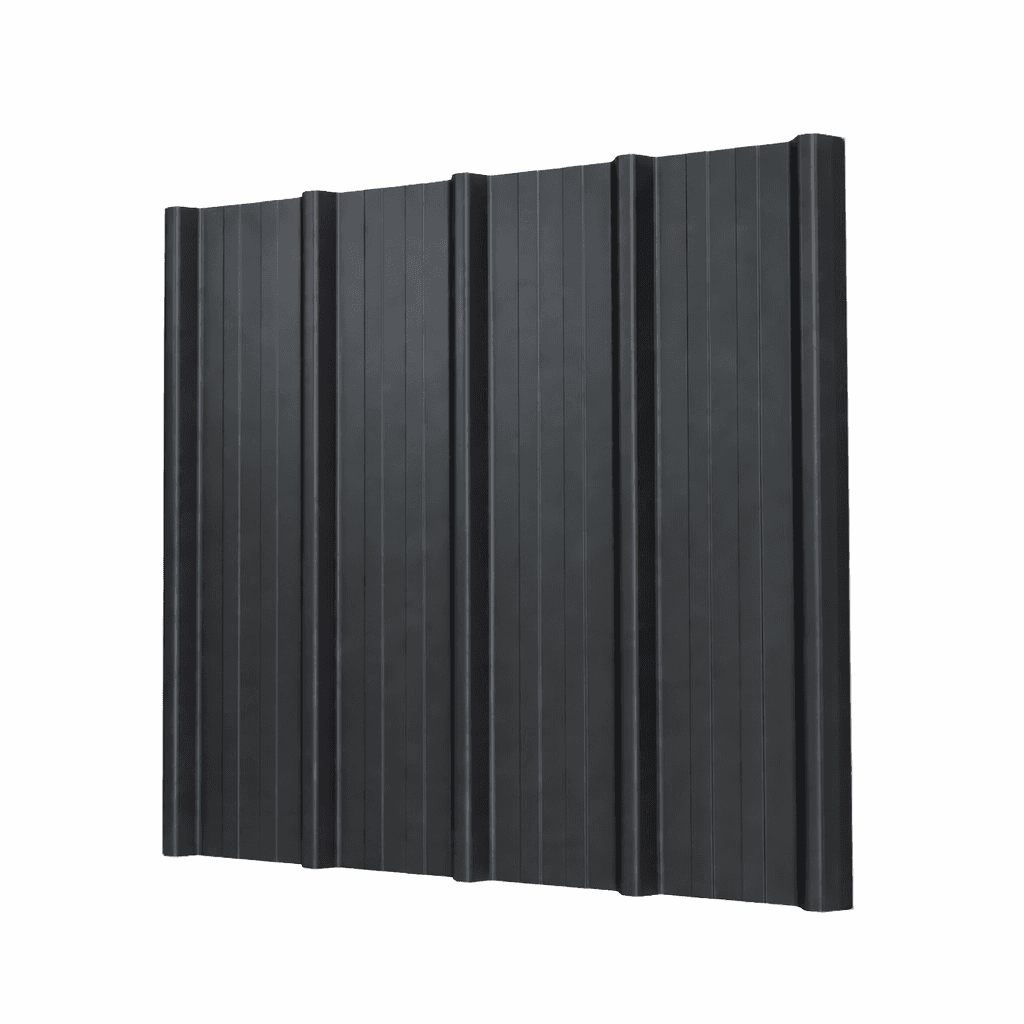

DC100

  • Lightweight insulated panel with PIR core
  • Designed specifically for roofing
  • Aluminium foil internal liner
  • Quick and easy to install
Panel Specifications

Sheet Length

  • Min Length: 2.5m
  • Max Length: 13.50m

Outer Sheet Options

  • Polyester
  • Plastisol 200µ HPS
  • Pvdf 25µ

Inner Side Options

  • Aluminium Foil Stucco
  • Grey White (RAL 9002)

Insulation

  • Polyisocyanurate (PIR)
  • Density: 40 ± 5 kg/m³, without CFC-HCFC
  • Fire Reaction Classification: B3 (HCFC Free)
  • Lambda Value: 0.0225 W/m·K
  • Standard Thickness: 30mm
  • Optional Thicknesses: 20mm, 40mm, 60mm

Thickness & Structural Performance

ThicknessWeight (kg/m²)Max Moment (Span) (kg.m)Max Moment (Support) (kg.m)
20mm6.750.901.11
30mm7.150.641.55
40mm7.540.501.99
60mm8.340.342.88

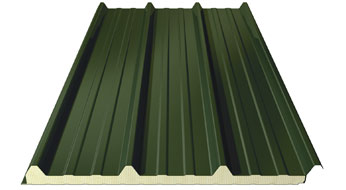

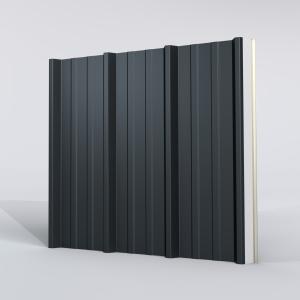

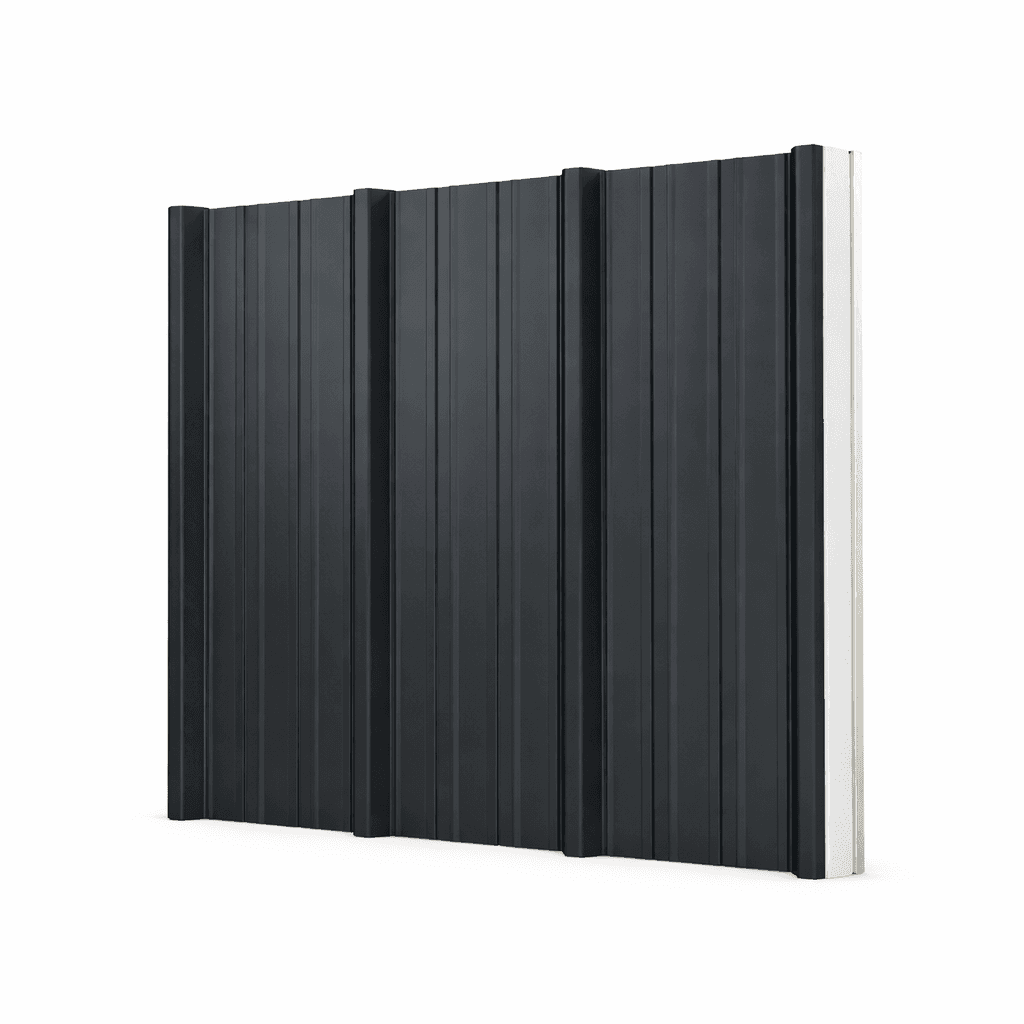

DC200

  • Thru-fix composite panel with PIR core
  • Designed for roof or wall applications
  • Large spanning capability
  • Steel inner and outer sheet
Panel Specifications

Sheet Length

  • Min Length: 2.50m
  • Max Length: 14.50m

Outer Sheet

  • Substrate Coating: 275g/m² Zinc
  • Sheet Thickness: 0.6mm
  • Cover Width: 1000mm
  • Profile Type: Microrib or Eurobox
  • Finish: Plastisol 200µ HP

Inner Sheet

  • Substrate Coating: 275g/m² Zinc
  • Sheet Thickness: 0.5mm
  • Profile Type: Eurobox
  • Finish: Interior Coating 15µ (RAL 9002)

Insulation

  • LCP Rigid Polyisocyanurate Foam (PIR)
  • Density: 38-42kg/m³
  • Lambda Value: 0.025 W/m·K
  • Standard Thickness: 80mm
  • Optional Thicknesses: 40mm, 60mm, 80mm, 100mm

Thickness & Thermal Performance

ThicknessWeight (kg/m²)U-Value (W/m²K)
40mm10.280.48
60mm11.080.33
80mm11.880.25
100mm12.680.20

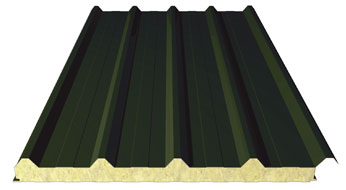

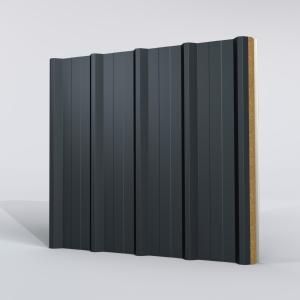

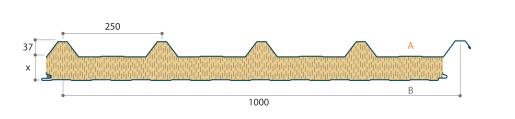

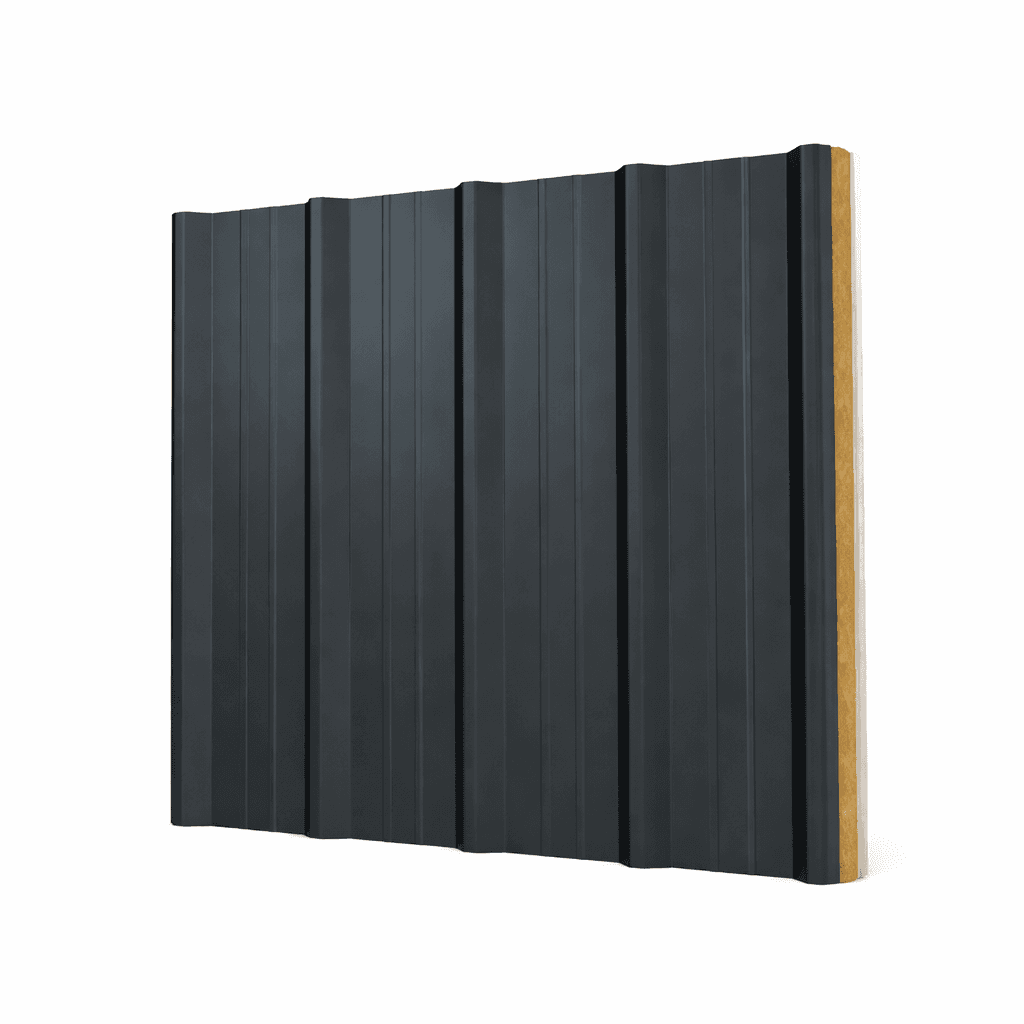

DC300

  • Insulating roof panel with Rock Fibre core
  • Designed for roof or wall applications
  • Perforated liner option for acoustic use
  • Thickness up to 200mm for fire resistance
Panel Specifications

Sheet Length

  • Min Length: 2.00m
  • Max Length: 14.00m

Outer Sheet

  • Substrate Coating: 275g/m² Zinc
  • Sheet Thickness: 0.6mm or 0.75mm
  • Cover Width: 1000mm
  • Finish Options:
    • Plastisol 200µ
    • Polyester Silicone 25µ

Inner Sheet

  • Substrate Coating: 275g/m² Zinc
  • Sheet Thickness: 0.5mm
  • Profile Type: Eurobox
  • Finish: Interior Coating 15µ (RAL 9002)

Insulation

  • Type: High-Density Rock Fibre (HCFC Free)
  • Density: 38-42kg/m³
  • Fire Classification: EI 150 Minutes
  • Lambda Value: 0.040 W/m·K
  • Standard Thickness: 80mm
  • Optional Thicknesses: 60mm, 100mm, 120mm

Thickness & Thermal Performance

ThicknessWeight (kg/m²)U-Value (W/m²K)
60mm16.000.61
80mm18.000.47
100mm20.000.38
120mm22.000.32

* additional specifications for thicknesses up to 200mm available on request

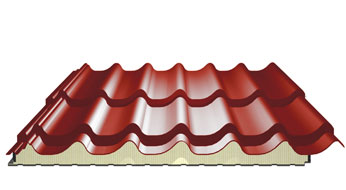

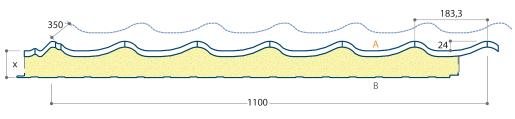

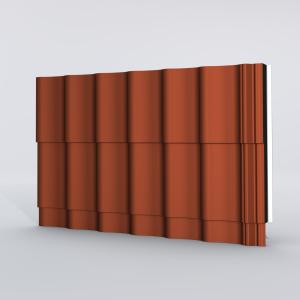

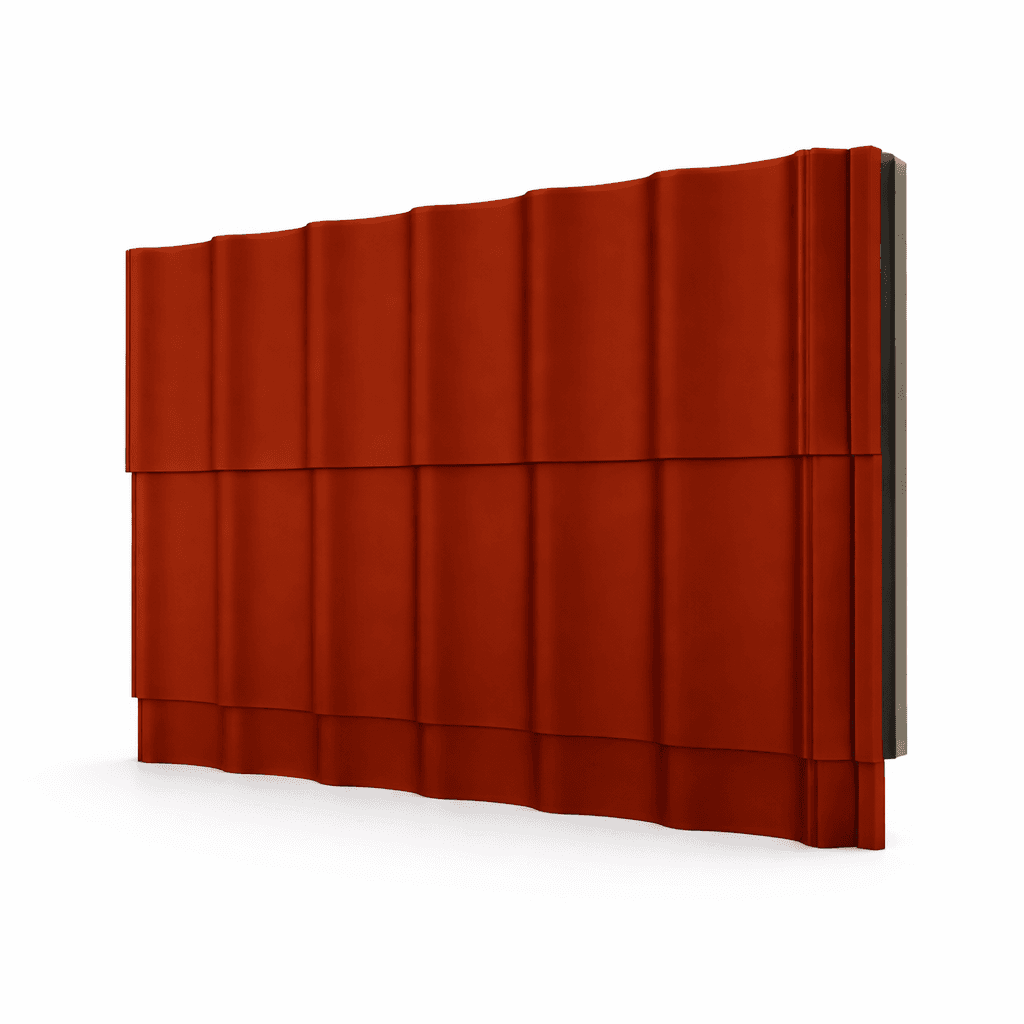

DC400

  • Tile effect composite panel with PIR core
  • Designed for pitched roofs
  • Used for both renovations and new buildings
  • Perfect alternative to traditional roof tiles
Panel Specifications

 Sheet Length

  • Min Length: 2.10m
  • Max Length: 8.40m

Outer Sheet

  • Substrate Coating: 275g/m² Zinc
  • Sheet Thickness: 0.7mm
  • Cover Width: 1100mm
  • Minimum Roof Pitch: 8°
  • Finish: Plastisol 200µ HP

Inner Sheet

  • Substrate Coating: 275g/m² Zinc
  • Sheet Thickness: 0.5mm
  • Profile Type: Eurobox
  • Finish: Interior Coating 15µ White

Insulation

  • Type: LCP Rigid Polyisocyanurate Foam (PIR)
  • Density: 45kg/m³
  • Fire Rating: LPC
  • Lambda Value: 0.022 W/m·K
  • Standard Thickness: 40mm
  • Optional Thicknesses: 60mm, 80mm

Thickness & Thermal Performance

Thickness Weight (kg/m²) U-Value (W/m²K)
40mm 12.00 0.53
60mm 12.50 0.39
80mm 13.00 0.30

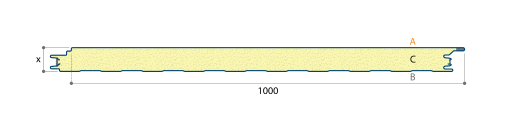

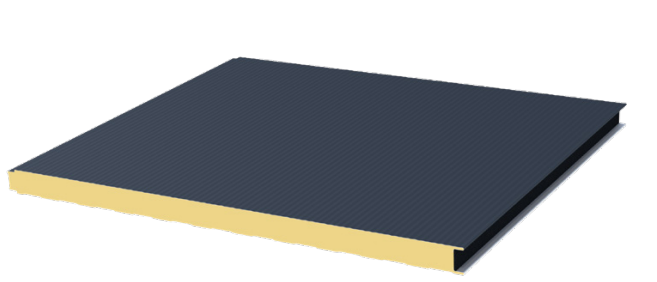

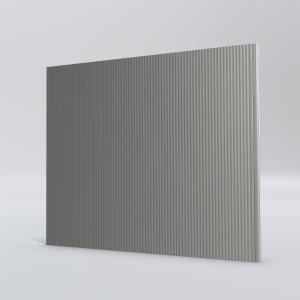

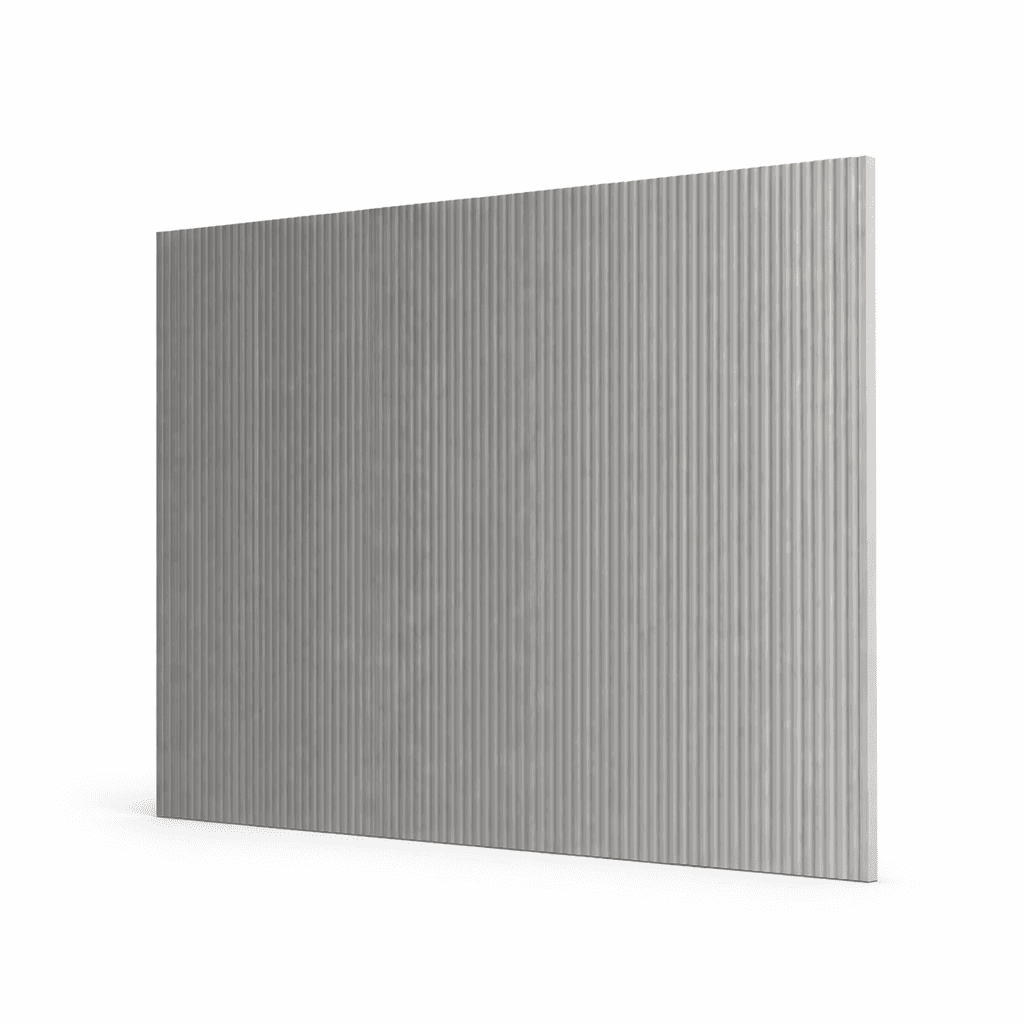

DC500

  • Microrib panel with PIR core
  • Designed for external walls and partitions
  • Thru-fix and Secret Fix variants available
  • Can be installed both vertically and horizontally
Panel Specification

Sheet Length

  • Min Length: 2.50m
  • Max Length: 14.50m

Outer Sheet

  • Substrate Coating: 275g/m² Zinc
  • Sheet Thickness: 0.6mm
  • Cover Width: 1000mm
  • Profile Type: Microrib or Eurobox
  • Finish Options:
    • Plastisol 200µ HP
    • Polyester 25µ

Inner Sheet

  • Substrate Coating: 275g/m² Zinc
  • Sheet Thickness: 0.5mm
  • Fire Rating: LPS 1181 Grade B and Grade A
  • Profile Type: Eurobox
  • Finish: Interior Coating 15µ (RAL 9002)

Insulation

  • Type: LCP Rigid Polyisocyanurate Foam (PIR)
  • Density: 38-42kg/m³
  • Lambda Value: 0.025 W/m·K
  • Standard Thickness: 80mm
  • Optional Thicknesses: 60mm, 100mm

Thickness & Thermal Performance

Thickness Weight (kg/m²) U-Value (W/m²K)
60mm 11.90 0.342
80mm 12.70 0.256
100mm 13.50 0.200

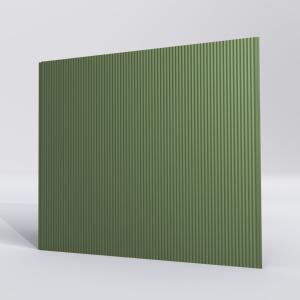

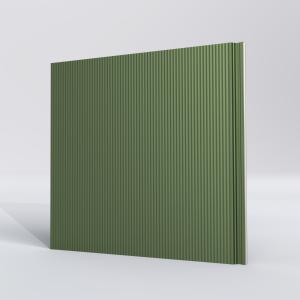

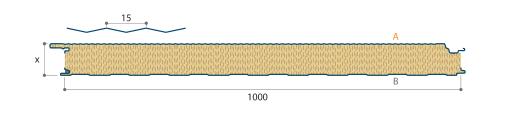

DC600

  • Microrib panel with Rock Fibre core
  • Designed for external walls and partitions
  • Thru-fix and Secret Fix variants available
  • Can be installed both vertically and horizontally
Panel Specifications

Sheet Length

  • Min Length: 2.00m
  • Max Length: 14.00m

Outer Sheet

  • Substrate Coating: 275g/m² Zinc
  • Sheet Thickness: 0.6mm or 0.75mm
  • Cover Width: 1000mm
  • Profile Type: Microrib or Eurobox
  • Finish: Plastisol 200µ

Inner Sheet

  • Substrate Coating: 275g/m² Zinc
  • Sheet Thickness: 0.5mm
  • Profile Type: Eurobox
  • Finish: Interior Coating 15µ (RAL 9002)

Insulation

  • Type: High-Density, Vertically Oriented Fibres
  • Density: 38-42kg/m³
  • Lambda Value: 0.040 W/m·K
  • Fire Reaction Classification: A2-s1d0 (Fireproof)
  • Standard Thickness: 80mm
  • Optional Thicknesses: 60mm, 100mm, 120mm

Thickness & Thermal Performance

Thickness Weight (kg/m²) U-Value (W/m²K)
60mm 16.30 0.61
80mm 18.30 0.47
100mm 20.30 0.38
120mm 20.30 0.32
