Roofing

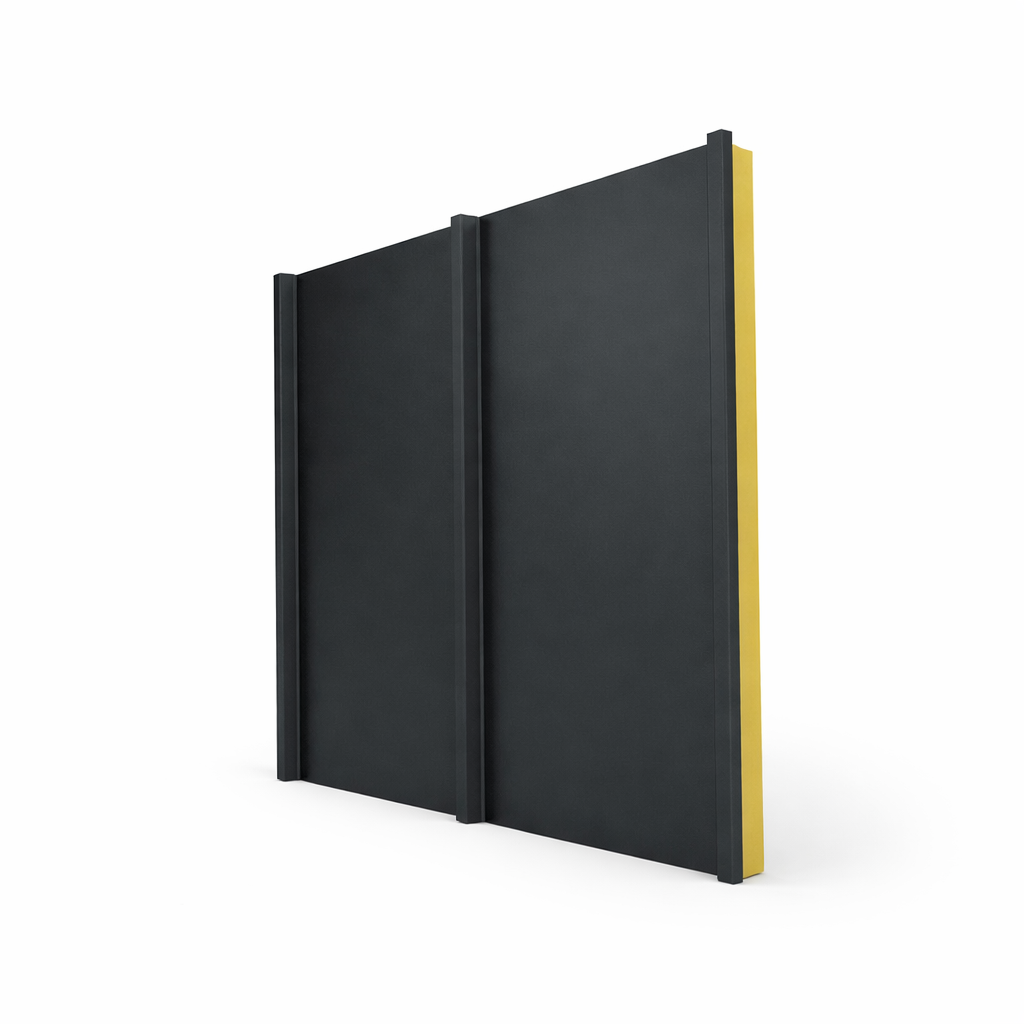

DC1000 Premium Standing Seam Roof

The DC1000 (JI Vieo Roof 1050) is an elegant insulated roof panel that perfectly captures the prestige of a traditional zinc standing seam. Built around a CFC/HCFC-free PIR foam core, it delivers uncompromising thermal performance alongside a beautifully crisp architectural finish. Available in multiple thicknesses, it represents a state-of-the-art, all-in-one installation solution that dramatically outpaces the build-time of traditional methods while meeting the rigorous mechanical demands of industrial, commercial, and residential projects.

DC1000 Premium Standing Seam Roof

Key Advantages

Elegant standing seam profile replicating traditional zinc
High thermal performance and mechanical strength (PIR core)
All-in-one panel ensures dramatically faster installation
Suitable for industrial, commercial, and residential sectors
Durable steel composition requires very low maintenance
Customizable thickness to meet specific project demands

Technical Specifications

Standard Length
From 2550 mm to 16000 mm
Effective Width
1050 mm
Type of Metal
Steel S280 GD
Outer Plate
Trapezoidal steel plate, type 38-525-1050, 0.70mm
Coatings
Grandemat (40 µ) (Color chart MR101 Colorflow)
Inner Plate
Lightly profiled steel (Linear) (0.40mm, RAL 9002 15µ)
Fastening
With or without support bracket on the wave
Fire Class
B-s2,d0 (EN 13501-1:2019)
Minimum Roof Pitch
≥ 5°

Performance Data

ThicknessWeightU-Value
40mm12.42 kg/m²0.49 W/m²K
100mm14.69 kg/m²0.21 W/m²K
130mm15.89 kg/m²0.16 W/m²K

Real World Applications

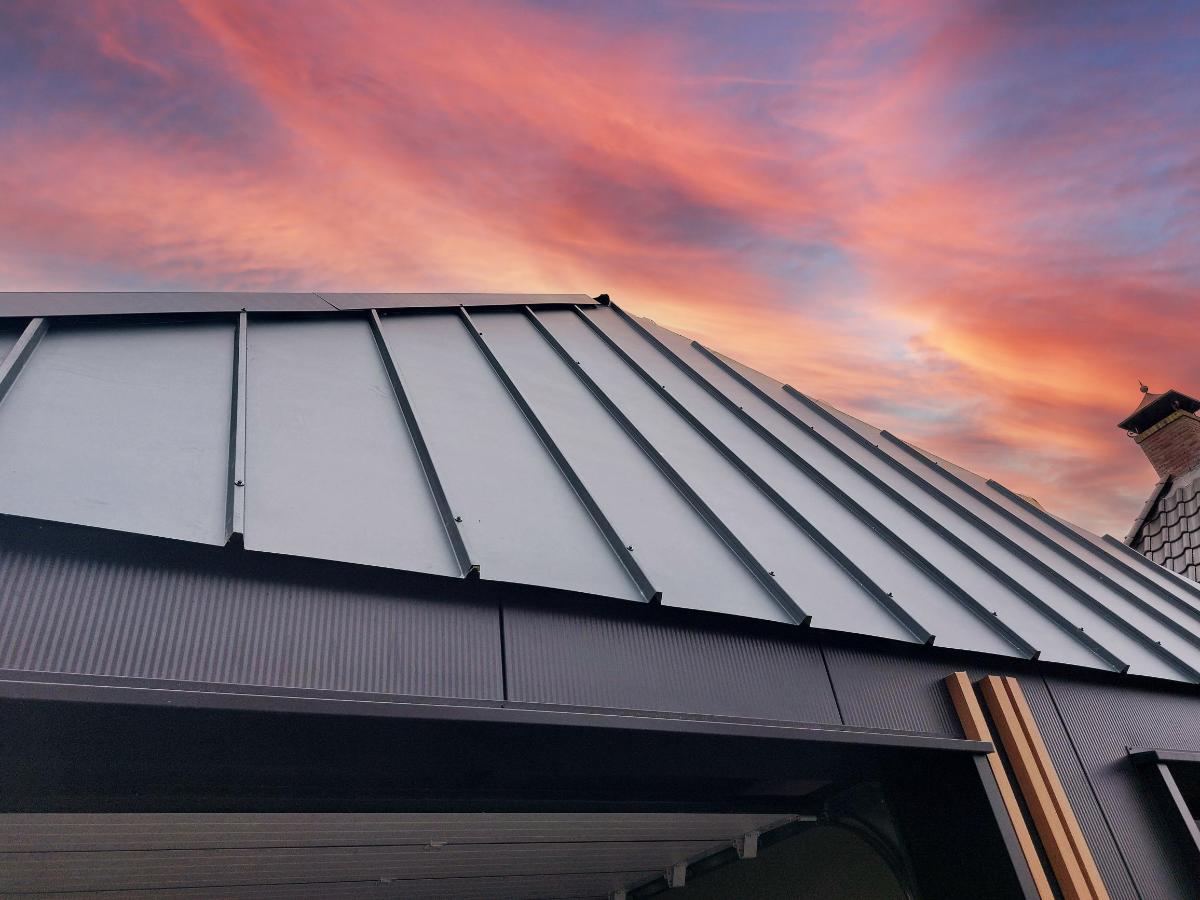

DC1000 Premium Standing Seam Roof application showcase 1

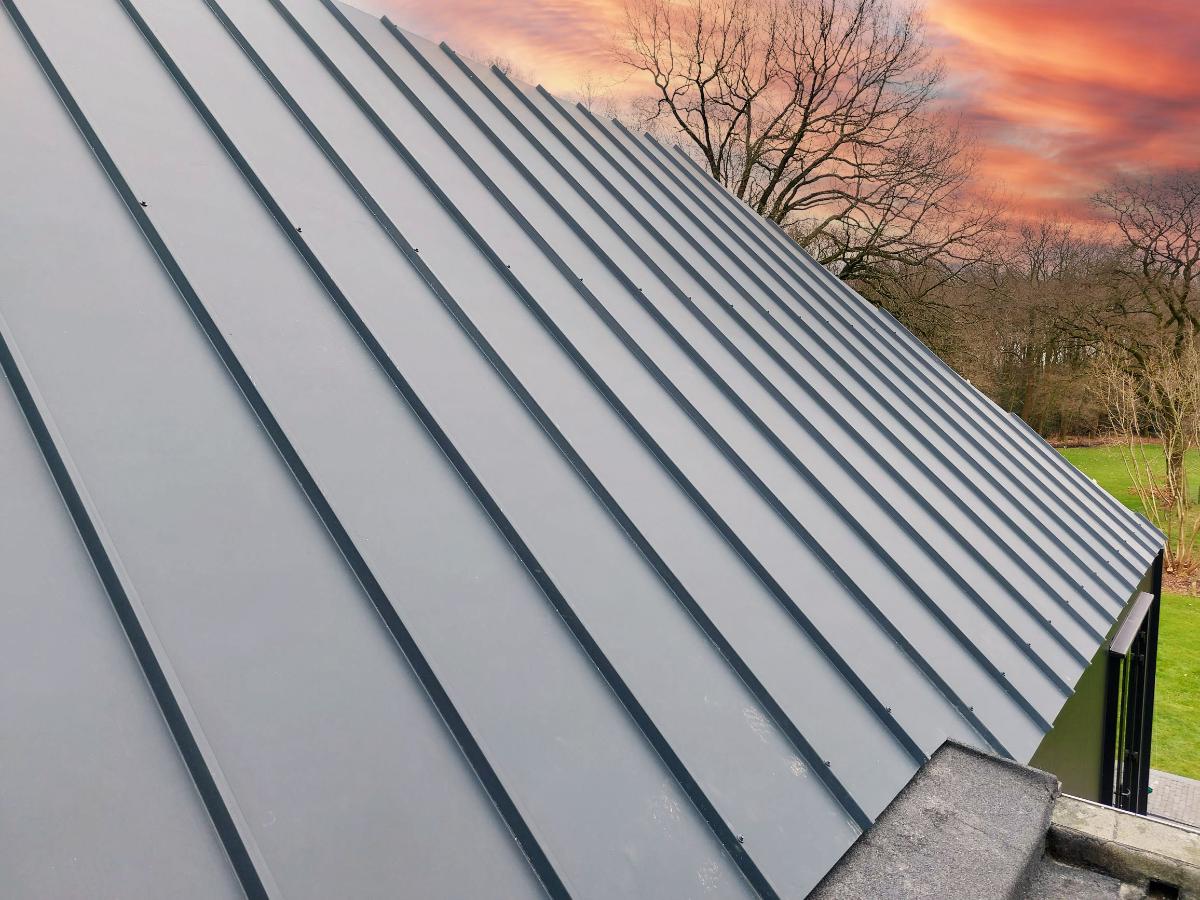

DC1000 Premium Standing Seam Roof application showcase 2

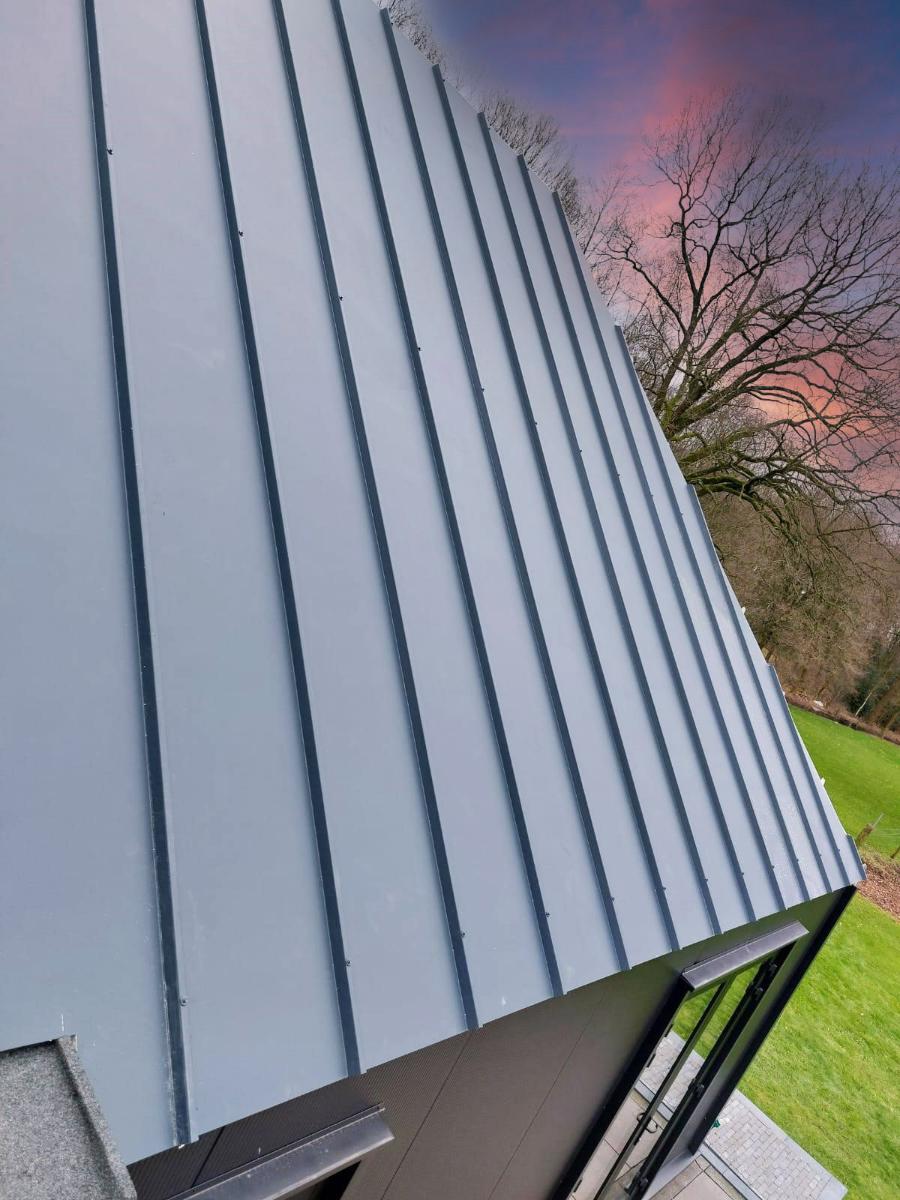

DC1000 Premium Standing Seam Roof application showcase 3
