Wall

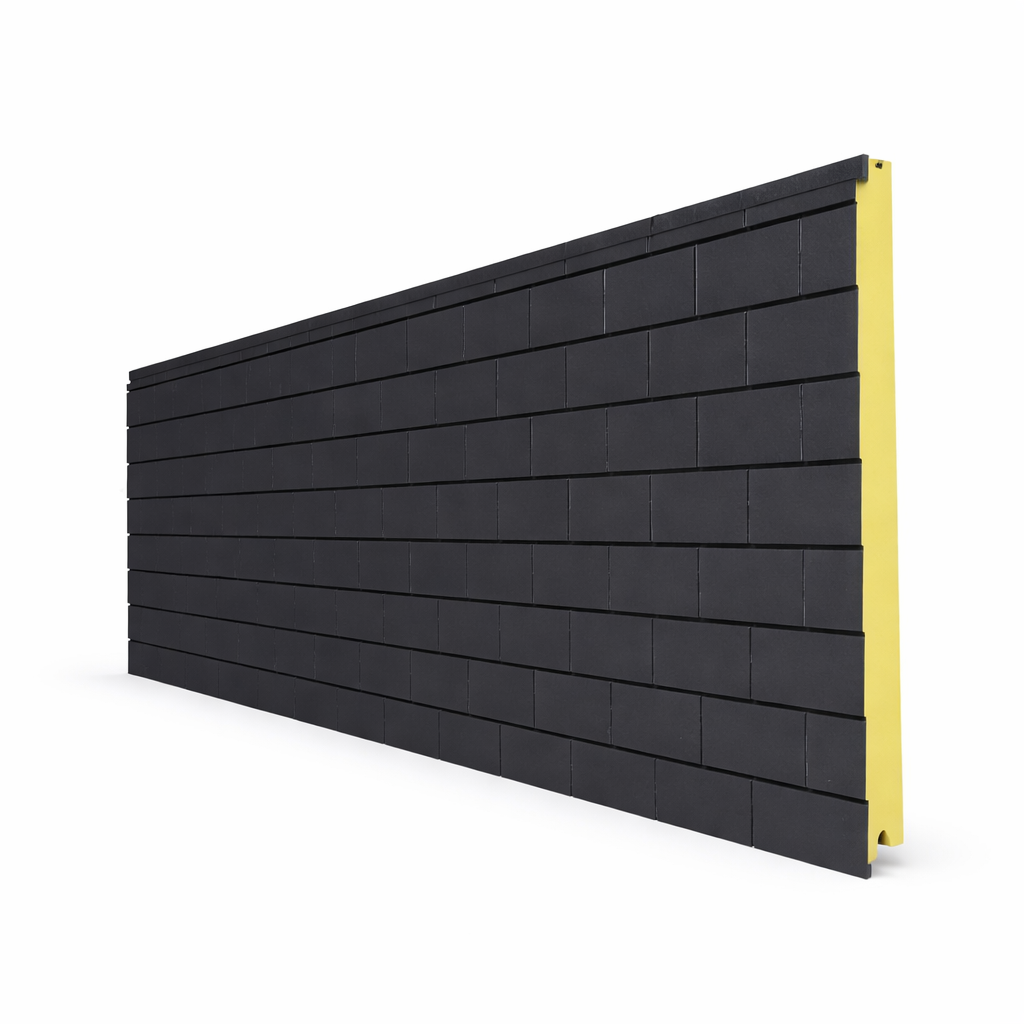

DC900 Slate-Effect Wall Panel

The DC900 (JI SF Slate 1000) wall panel is an insulated cladding solution that combines secret fixings with a stylish, slate-patterned outer exterior. Powered by a CFC/HCFC-free PIR foam core, it delivers exceptional thermal performance within a lightweight structure. Bridging the natural charm of slate with the resilience of modern steel, this panel ensures rapid horizontal installation, outstanding durability, and a maintenance-friendly finish for premium residential and tertiary facades.

Request a QuoteCall Sales
DC900 Slate-Effect Wall Panel

Key Advantages

Premium slate aesthetics with steel durability
Hidden fastening system for a superior finish
High thermal performance and energy efficiency
Lightweight formulation for easy handling
Quick and cost-effective horizontal installation
Low maintenance with exceptional longevity

Technical Specifications

Standard Length
From 2500 mm to 10000 mm (steps of 250 mm)
Effective Width
1000 mm
Assembly
Horizontal direction
Type of Metal
Steel S250 GD
Outer Plate
Steel plate with slate pattern (125 x 250mm), 0.50mm
Coatings
Grandemat (40 µ) RAL 7024
Inner Plate
Lightly profiled steel (Linear) (0.40mm, RAL 9002 15µ)
Fastening
Hidden (requires pressure distribution plate)
Maximum Purlin Distance
1500 mm
Fire Class
B-s1,d0 (EN 13501-1:2019)

Performance Data

ThicknessWeightU-Value
60mm10.44 kg/m²0.37 W/m²K
120mm12.72 kg/m²0.18 W/m²K

Real World Applications

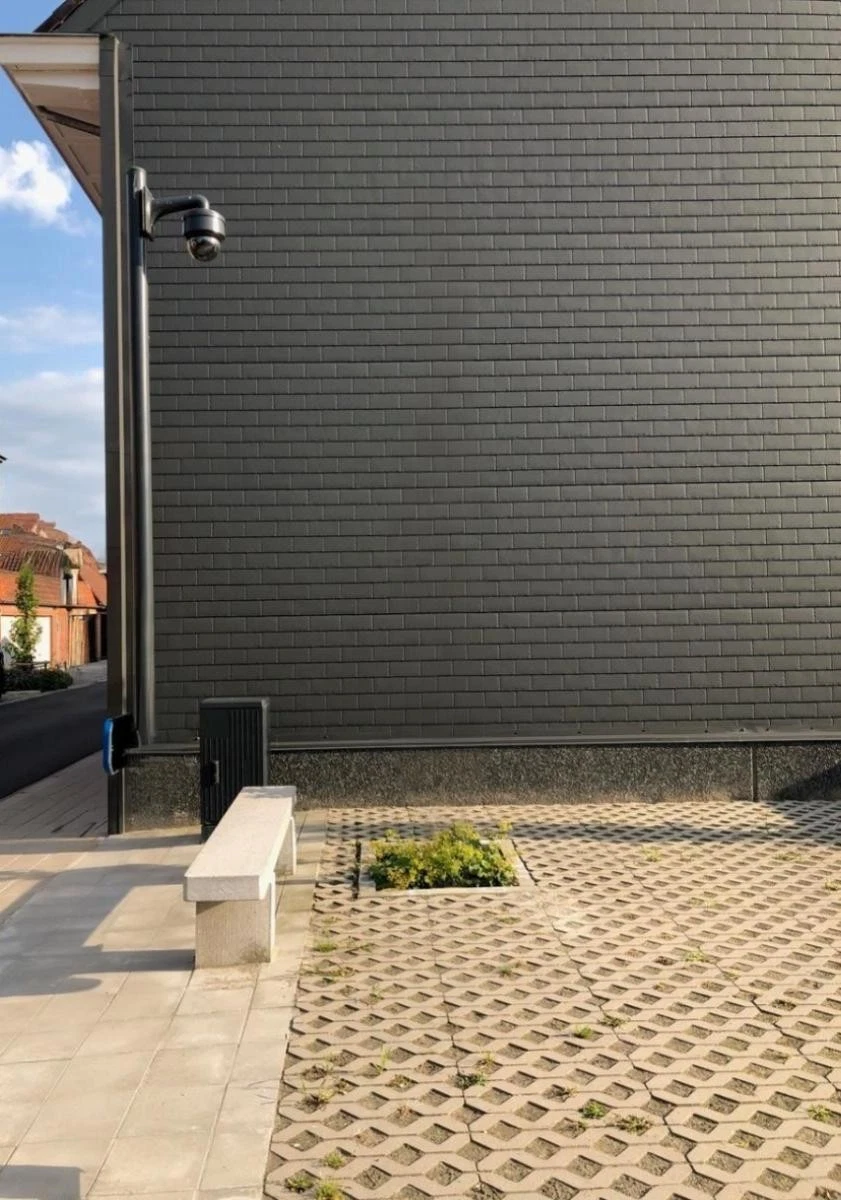

DC900 Slate-Effect Wall Panel application showcase 1

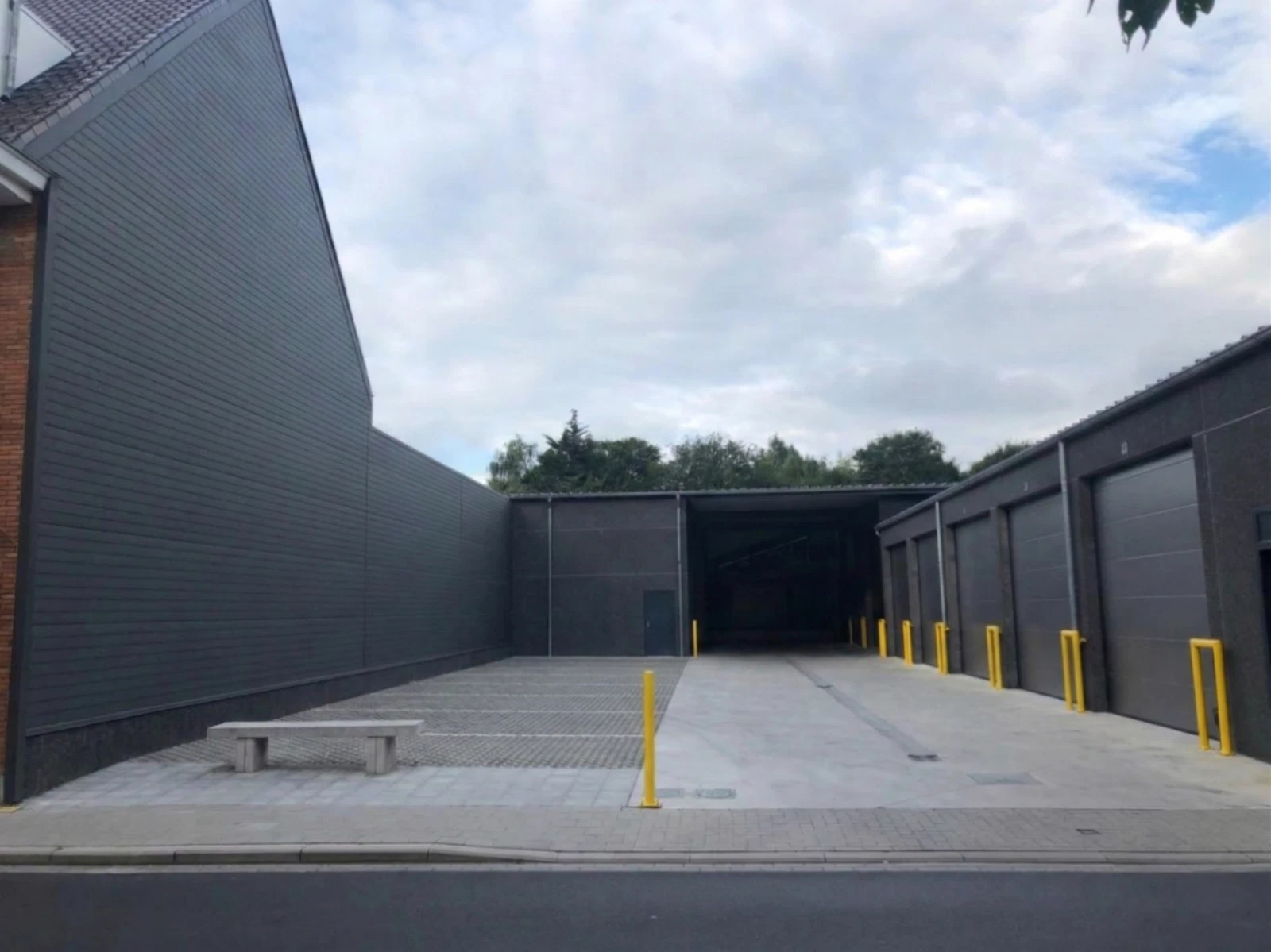

DC900 Slate-Effect Wall Panel application showcase 2

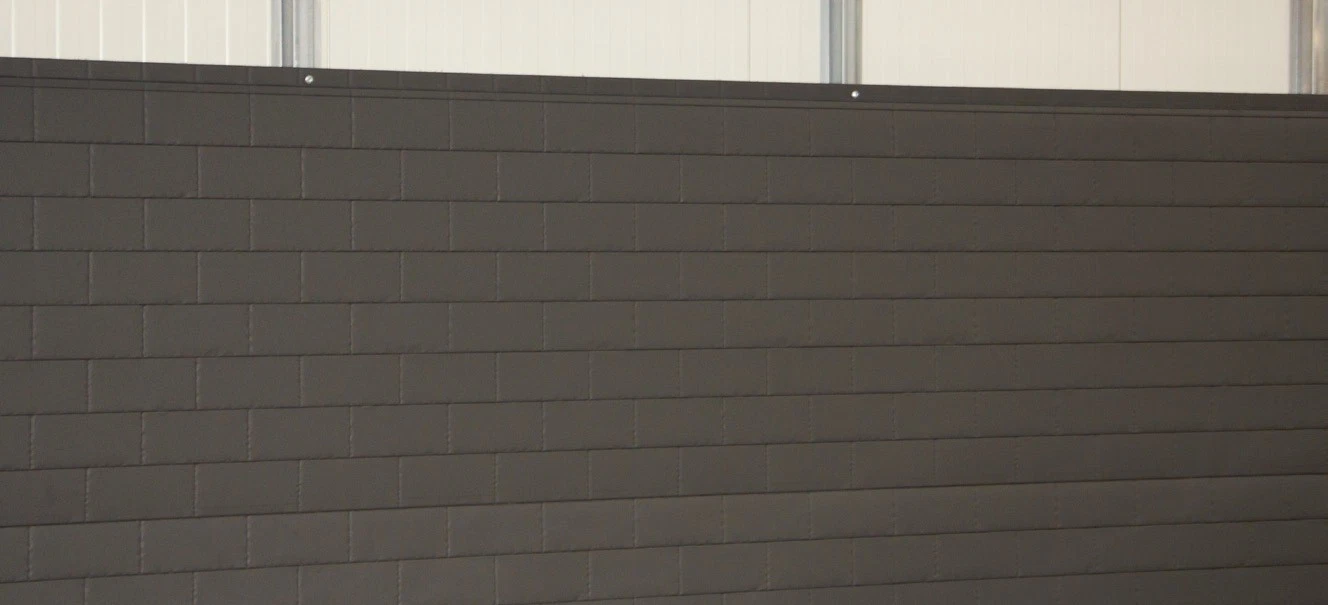

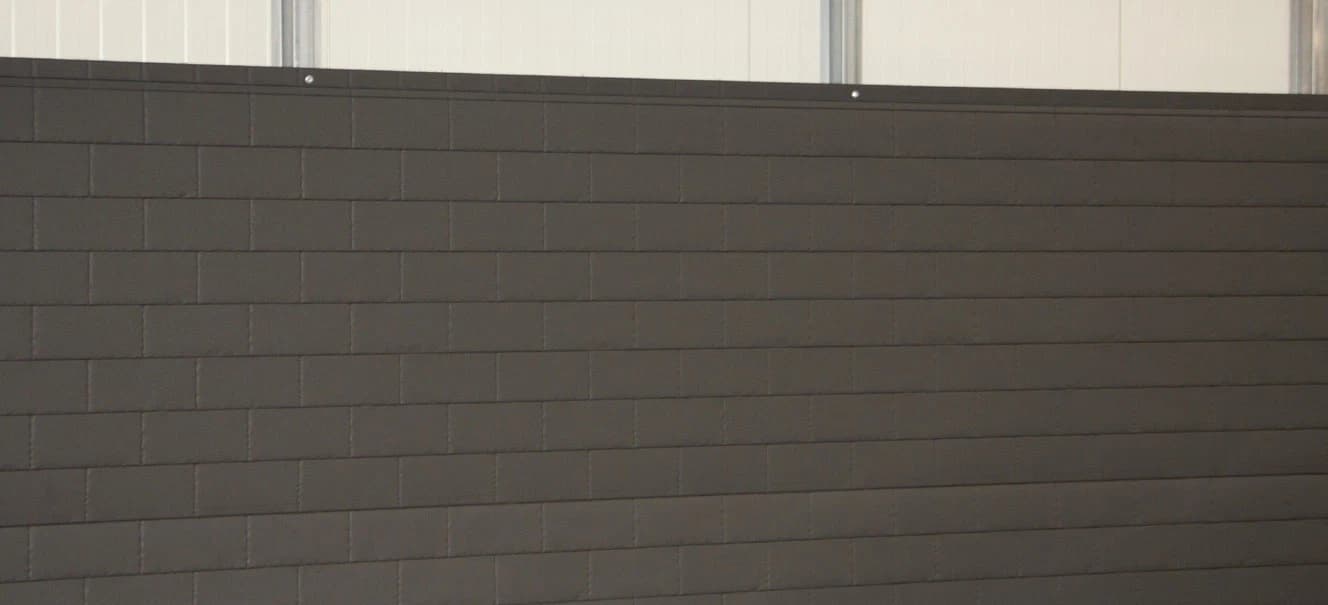

DC900 Slate-Effect Wall Panel application showcase 3
